Why Stainless Steel Tumblers Wobble: Base Pad Fit, Bottom Mold Accuracy, and Flatness Checks
A stable tumbler depends on two different systems: the geometry of the metal cup bottom and the fit of any plastic or silicone base pad. Buyers should diagnose them separately because the corrective action is not the same.
Stainless steel tumblers wobble when the bottom does not rest evenly on a flat surface. BG Drinkware's production notes identify an off-center, mismatched, or unevenly seated plastic or silicone base pad as the more common cause. The other path is the metal outer shell itself, especially the bottom geometry produced by its tooling and forming process.
These need different decisions. If the bare body is stable, inspect and replace or reinstall the pad. If the bare body still wobbles on a clean glass plate, reject the body and inspect the forming tool instead of hiding the problem with another pad.
Factory-review basis: This guide is based on BG Drinkware production notes covering mold trials, base-pad fit, glass-plate checks, and defect handling. It explains the factory's working method; it is not a published industry standard or a claim about universal defect rates.
What actually makes a tumbler rock on a flat surface?
Wobble begins when the lowest points do not rest evenly on the surface. That sounds simple, but the symptom alone does not identify the defective part. Across custom tumbler models, a finished unit can rock because the attached base component is uneven or because the underlying metal body is not flat.
Base-pad fit or installation

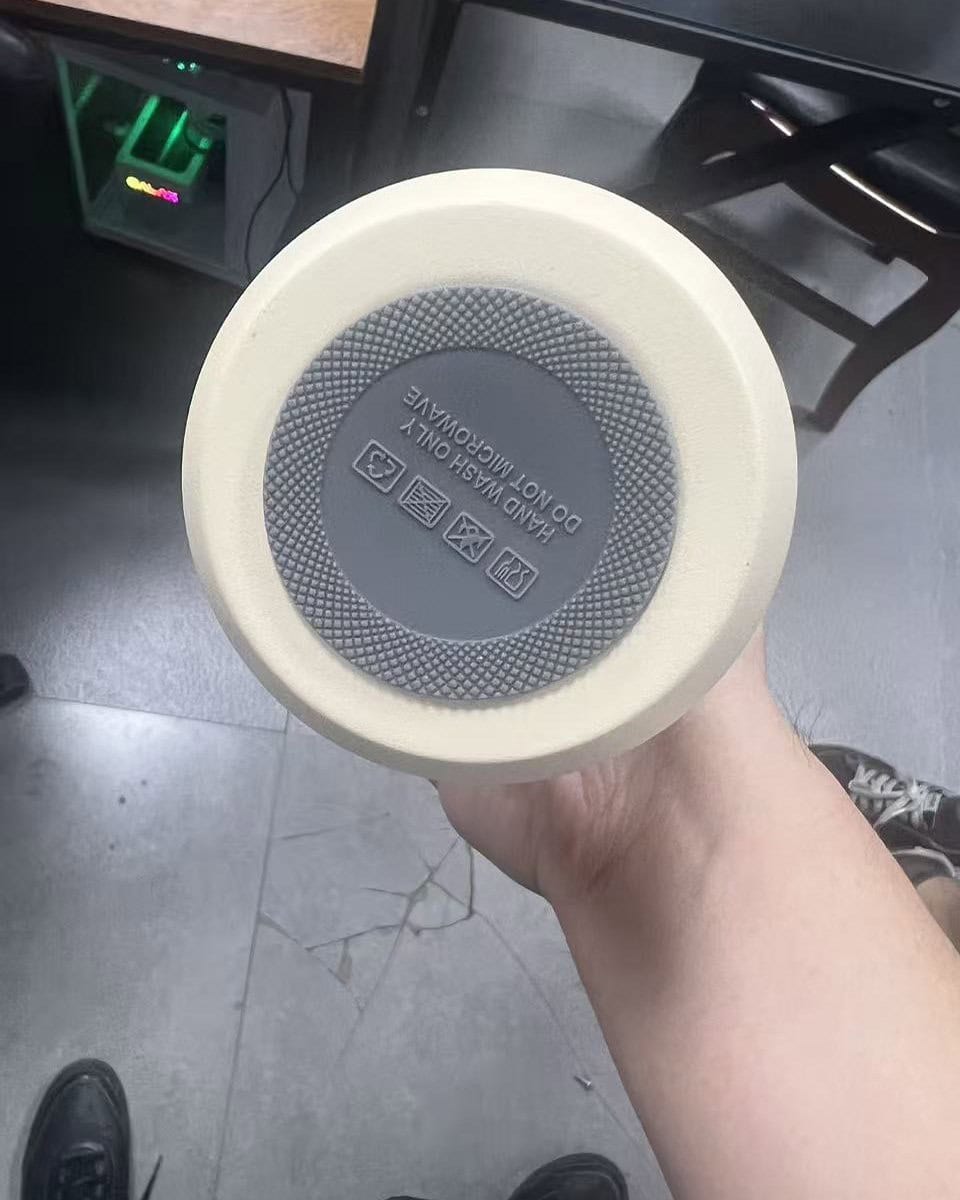

The pad may be the wrong size for the bottom recess, positioned off-center, incompletely seated, locally lifted, or distorted during installation. Because this is a replaceable component, it should be isolated before the cup body is judged.
Metal bottom geometry

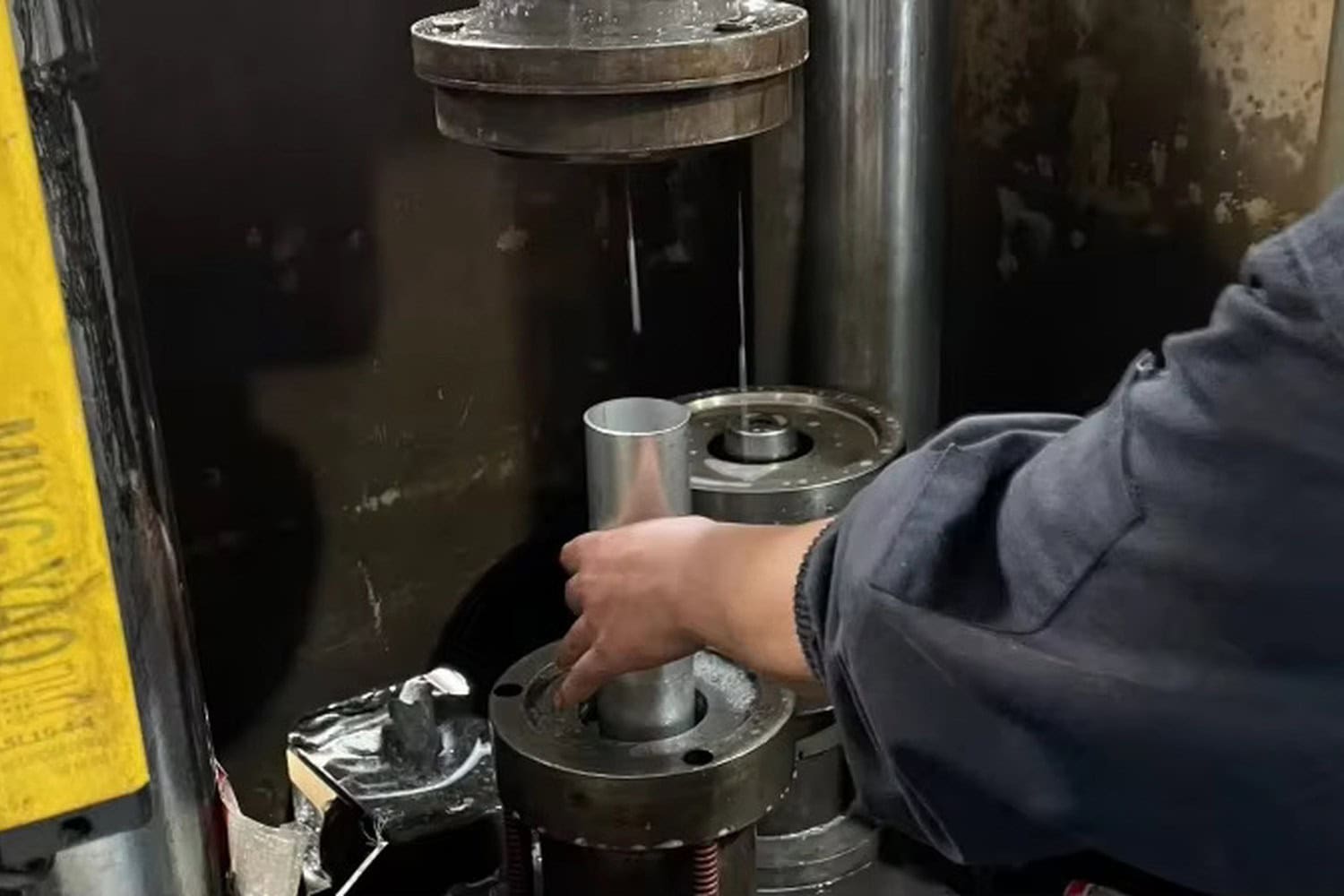

The outer-shell bottom may have an uneven contact ring or another geometry error related to tooling, forming, or the mold-trial setup. Once confirmed on the bare body, this is a cup-body defect, not a base-pad adjustment.
How can a factory tell whether the pad or the cup body is responsible?
The assembly should be checked in stages on a clean, reliably flat surface. BG Drinkware uses a glass plate for this check. The purpose is not to press the cup until it appears still, but to find which part makes it rock.
- Verify the test surface.
Clean the glass plate and the tumbler bottom so dust, coating debris, packaging material, or another small obstruction does not create a false result.
- Place and rotate the finished unit.
Observe whether the rocking behavior remains consistent as the tumbler is turned. Record the affected sample instead of relying on a quick visual impression.
- Inspect the base pad.
Check whether the plastic or silicone part matches the intended model, sits centrally in its locating area, and contacts the bottom evenly.
- Check the pad and body separately.
If the pad is removable, test it and the underlying cup body independently. This keeps a poor pad installation from hiding a body problem or causing a good body to be rejected.
- Decide what to do with each part.
Reinstall or replace a faulty base pad when appropriate. If the bare metal body is outside the agreed requirement, reject it rather than trying to disguise the wobble.
Swipe horizontally to compare all four columns.
| Observation | Likely path to check | Confirmation | Typical disposition |
|---|---|---|---|
| Pad visibly off-center | Installation position | Compare the pad edge and locating recess around the full circumference | Reinstall or replace the pad, then retest |
| Pad does not seat evenly | Pad size, shape, or model match | Check that the part belongs to the exact tumbler model and production version | Replace the mismatched or distorted part |
| Finished cup rocks, bare body does not | Replaceable base part | Repeat the check after correcting the pad | Correct the pad and inspect again |

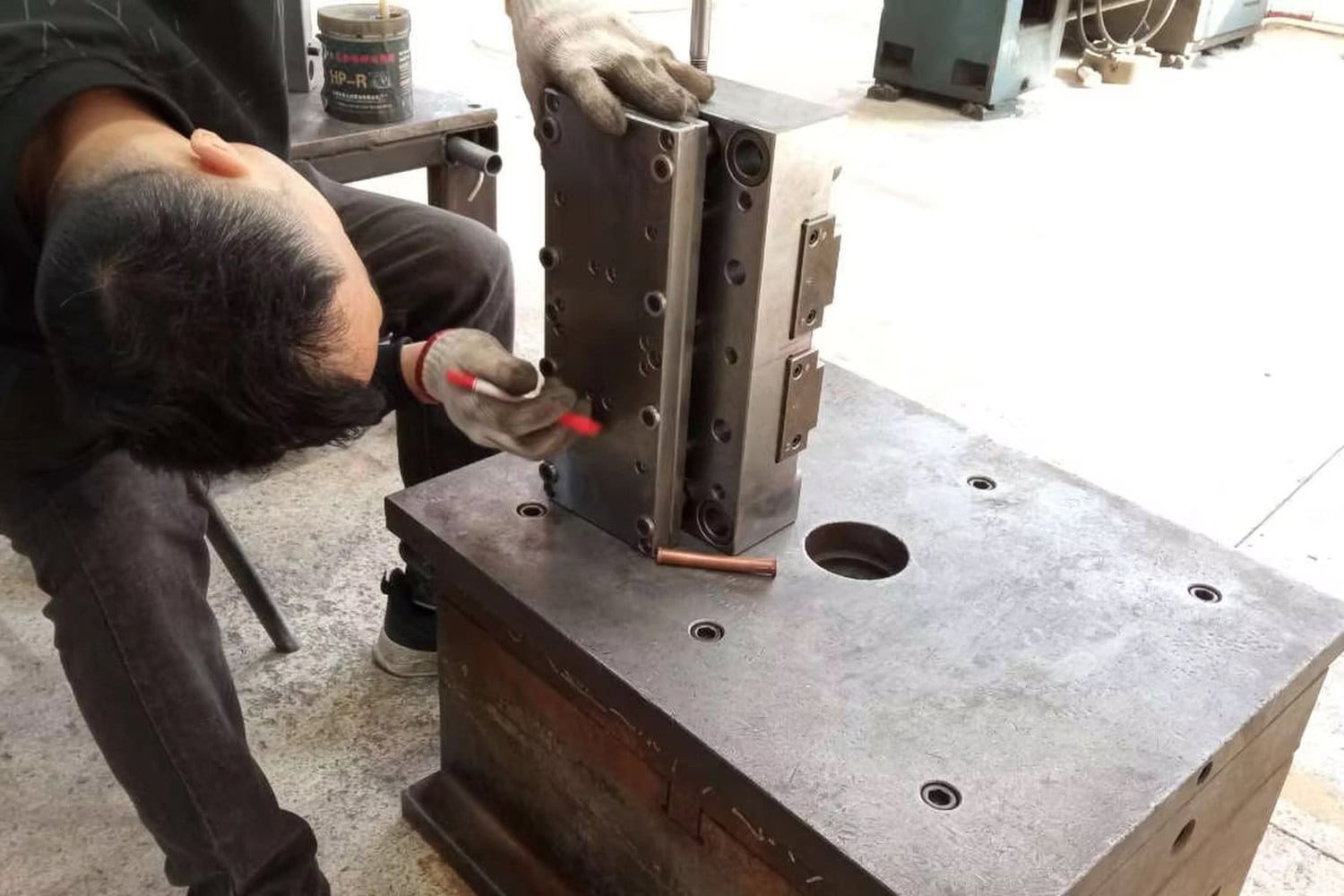

| Bare cup body rocks on the glass plate | Outer-shell bottom geometry | Repeat the check on a clean plate and compare other bodies from the same production stage | Reject the affected body and inspect the forming tool |
| Pattern repeats across trial pieces | Mold or tooling setup | Review trial samples before approving mass production | Correct the tool or process and repeat the trial |
Why should most wobble problems be solved during mold trials?
Repeated wobble in bare bodies points to the process. If trial pieces do not sit flat, the tooling or forming setup should be corrected before mass production begins. Continuing production and sorting decorated tumblers later moves the problem to a far more expensive stage.
Mold trials and sample confirmation are also the right stages to verify that the selected plastic or silicone base pad matches the actual production geometry. A part may look correct in a drawing yet seat poorly when its diameter, thickness, locating features, or flexibility do not match the bottom recess. Trial approval should therefore evaluate the assembled base, not only the metal shell in isolation.
Confirm that the bare cup sits stably before any pad is used to cover the bottom.
Confirm the exact pad material, size, locating position, and installation method for that model.
Keep a representative assembled sample and a written inspection method for production comparison.
Can an unstable cup body be repaired by changing the bottom pad?
No, not when the metal body itself is the confirmed cause. A thicker, softer, or differently positioned pad may temporarily reduce the visible movement, but it does not correct the underlying cup-body geometry. Using a pad to conceal a body defect also makes later production consistency harder to control.
BG Drinkware handles the two causes differently: a misinstalled or mismatched replaceable pad can be corrected and checked again; a bare cup body with faulty bottom geometry is rejected. This keeps a pad adjustment from turning into an unintended product change.
What should a buyer specify before bulk production?
Because stainless steel tumblers wobble when their bottom contact is uneven, “the cup must not wobble” is a useful objective—but it is not a complete inspection instruction. The buyer's stainless steel drinkware specification should identify the body construction and bottom component, while the quality-control plan should define the test surface, reference sample, sampling plan, and what happens when either the base pad or cup body fails.
- Exact tumbler model and bottom construction
- Plastic or silicone base-pad material
- Pad dimensions, color, texture, and artwork if applicable
- Reference pad position and seating condition
- Clean glass plate as the agreed reference surface
- Signed sample or final production confirmation
- Sampling level and acceptance criteria agreed for the order
- Separate handling rules for pads and metal bodies
- Reinspection required after any permitted correction
- Escalation when the same pattern repeats across samples
Do not assume that a generic sample approval covers every bottom component. If the base pad changes supplier, material, hardness, dimensions, or tooling revision, the assembled fit should be reconfirmed for the current model.
Acceptance sampling is a lot-disposition method rather than a promise that every unit was checked. NIST's introduction to lot acceptance sampling explains the basic concept; the actual sampling plan and acceptance criteria still need to be confirmed for each order.
Frequently asked questions
Does a wobbling tumbler mean its vacuum insulation has failed?
No. Wobble identifies an unstable bottom contact condition; vacuum failure identifies a thermal-insulation problem. A tumbler can require investigation for one, both, or neither, but the two results should be tested and recorded separately.
Is the silicone base pad always the cause?
No. BG Drinkware's production notes identify pad misalignment or mismatch as the more common cause, but the outer-shell bottom geometry must still be checked. The bare-body test shows whether replacing the pad is a valid correction.
What surface should be used to check tumbler flatness?
BG Drinkware uses a clean glass plate as the reference surface. The inspection method, sample quantity, and acceptance decision should be agreed for the order rather than inferred from a casual tabletop check.
Can a wobbling metal cup body be reworked?
BG Drinkware rejects a bare cup body when its bottom geometry does not meet the agreed requirement. Replaceable plastic or silicone parts may be corrected where appropriate, followed by another inspection.
When should bottom stability be approved?
It should be reviewed during mold trials and sample confirmation, then controlled during production. Solving repeated geometry or component-fit issues before bulk production is safer than sorting decorated finished goods.
Define the bottom assembly before production starts.
Send the tumbler model, base-pad requirements, target market, order quantity, artwork, packaging, and inspection expectations. BG Drinkware can review which details should be fixed in the sample and final production confirmation.
